The stadium Catwalk steel grating is a steel structure product used for the stadium Catwalk. The following will introduce its characteristics, application scenarios, installation points and other aspects.
High strength and high load-bearing capacity: It is made of load-bearing flat steel and crossbars welded in a certain spacing and latitude and longitude. It has a solid structure, high strength and load-bearing capacity, can bear the weight of staff and related equipment, and ensure stability and reliability under static or dynamic loads.
Good anti-slip property: The surface is usually anti-slip treated, such as using toothed flat steel or special surface processing to increase friction, effectively reduce the slip accidents of people when walking, and ensure safety of use.
Good ventilation and lighting performance: The unique grid structure allows air to circulate freely, improves the ventilation conditions of the stadium stand area, and allows light to pass through, enhances the lighting effect, and reduces the dependence on artificial lighting during the day.
Strong corrosion resistance: It is generally made of carbon steel and subjected to anti-corrosion treatment such as hot-dip galvanizing. It can be used for a long time in a crowded and frequently used environment such as a stadium without rusting and corrosion, extending the service life and reducing the frequency of replacement and maintenance.
Beautiful and easy to clean: The simple lines and unique grid pattern can be integrated with the architectural style of modern gymnasiums, enhance the beauty of the building, and do not accumulate dirt, rain, snow, or water. It has strong self-cleaning ability and is easy to maintain.
Light structure and easy to hoist: The weight is relatively light, which is easy to transport and hoist. It can save manpower and time costs during the installation process and improve construction efficiency.
Maintenance passage: The maintenance passage set above or in front of the stage of the stadium is used by staff to install and maintain ancillary facilities such as lighting, sound, and stage machinery. Steel grating has been widely used in the maintenance passage due to its many advantages.
Ceiling application: It can be used for the ceiling of the stadium stands, which can withstand a certain load and meet the requirements of ventilation, lighting and beauty.
Stairs and passages: It is laid on the stairs, passages and other parts of the stadium stands to provide a safe and reliable passage surface for spectators and staff.
Preparation: Before purchasing the steel grating, it is necessary to communicate with the manufacturer, split the drawings, and make holes in the columns, beams and other parts that need to be opened in advance. At the same time, the on-site quality management personnel shall carefully check the variety, material, specification, coating and appearance quality of the incoming steel grating, and check the design drawings and quality certification documents.
Foundation treatment: After the structural acceptance, before the plate is hoisted, the oil, paint and debris on the steel beam shall be carefully removed to ensure that the surface of the steel beam is clean and flat.
Laying conditions: The installation of the steel grating should be carried out after the corresponding steel beam is completed and the intermediate paint and fire retardant coating are applied, and it can only be laid after the high-strength bolts are finally tightened, the floor beam welding is qualified, the arc-starting plate is removed, the node is filled with intermediate paint, fire retardant coating and temporary installation are completed.
Positioning and laying out: According to the laying diagram of the steel grating, the laying position line is measured and laid out and marked on the upper flange plane of the steel beam with ink lines to ensure the accuracy of the laying of the steel grating.
Hoisting and placement: When lifting the steel grating, in order to prevent deformation, soft slings should be used or rubber should be added at the corners of the wire rope and the steel grating or pads should be used under the steel grating, and tied firmly. After hoisting to the designated location, the plate should be straightened and compacted in strict accordance with the steel grating laying diagram and specification requirements, and fixed symmetrically.
Fixing method: Generally, welding is used for fixing, with a welding point every 500mm on the side, a 4mm angle steel weld, a 20mm weld length, and a 5-10mm steel grating installation gap, which can be adjusted according to the actual situation on site. After welding, the welding slag and splashing need to be removed, and two coats of zinc-rich paint should be applied manually.
Regular inspection: Regularly check the horseway steel grating to check whether there is deformation, looseness, weld cracking, etc. If there is any problem, repair or replace it in time.
Clean surface: Regularly clean the dust and debris on the surface of the steel grating to keep the surface clean to ensure its self-cleaning ability and aesthetics.
Anti-corrosion treatment: For hot-dip galvanized steel grating, if the galvanized layer is found to be damaged, it should be repaired in time. Anti-corrosion treatment such as coating zinc-rich paint can be used to extend the service life of the steel grating.

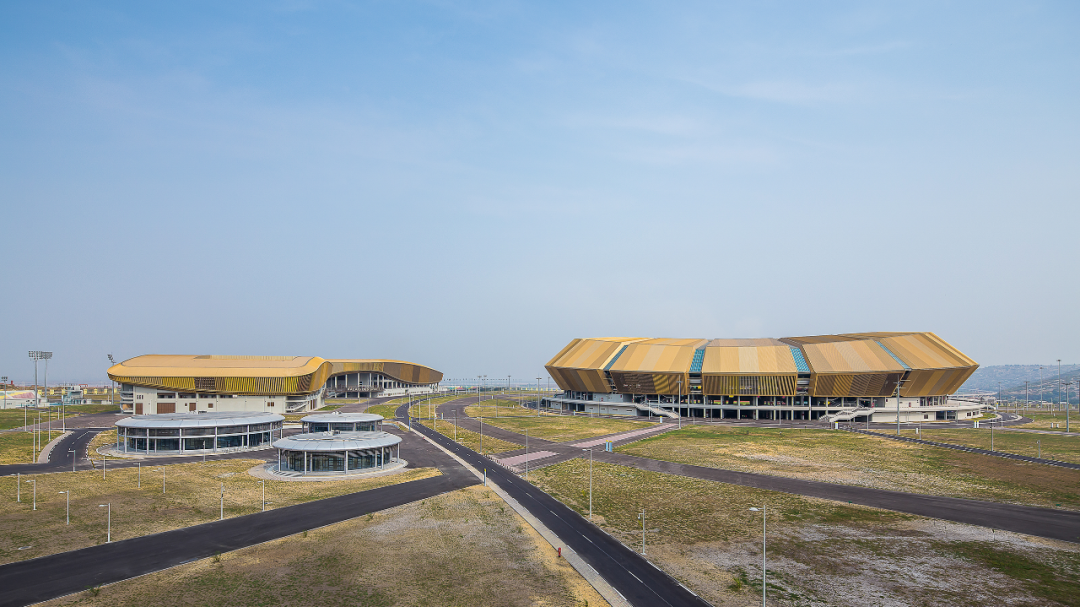

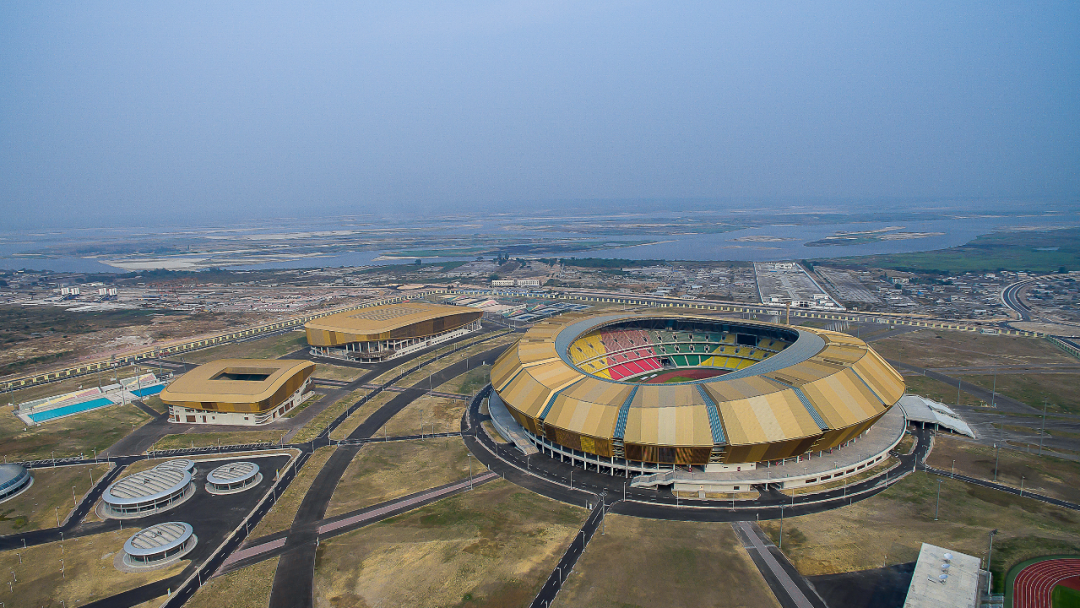

Brazzaville Stadium Construction Project
Project Location: The Republic of the Congo
Project Area: Stadium & Swimming Pool Catwalk
Steel Grating Specification: G205/30/100, 20x5 mm bearing bar, 30x100 mm pitch
Project Quantity: 65 Tons
Congo Brazzaville Stadium includes a 60,000-seat stadium and sparring ground, a 2,000-seat aquatic center, a 10,000-seat indoor gymnasium, road systems and greening, parking lots, and surrounding municipal pipe network projects. The total contract price is US$558 million. This project is the main venue for the 11th All-Africa Games in 2015 and has become a national landmark building in Congo (Brazzaville). In October 2016, the project won the Luban Award for National Quality Projects from the China Construction Industry Association.

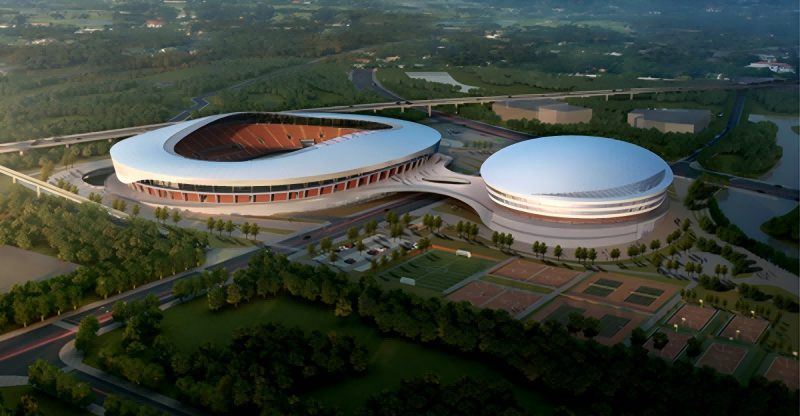

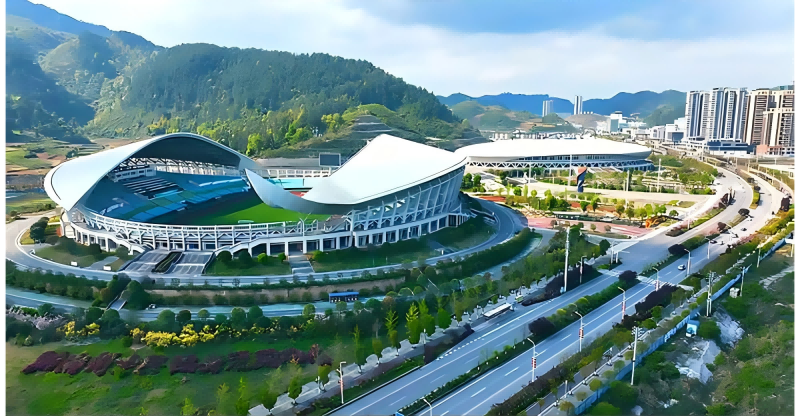

Duyun Mass Sports Center (Olympic Center)
Duyun City Guizhou Province China
Investment Amount: 400 million yuan
Building Scale Building area 64249.34m2; This project is divided into two sub-items: stadium and gymnasium. The main body of the gymnasium adopts a fully cast-in-place reinforced concrete frame structure system, and the roof adopts a square pyramid
Grid structure system; the stadium is elliptical in plan projection, consisting of a competition field and stands, with a total of about 25,000 seats.
Construction Purpose Gymnasium, stadium
Steel Grating Specification:
20x5 bearing bar, 22 x100 mm pitch.
