Steel Grating Installation Clearance

Table of Content [Hide]

    Steel grating installation typically requires specific clearances to ensure proper fit, functionality, and safety. The clearances depend on the type of grating and its application. Here are the general guidelines:

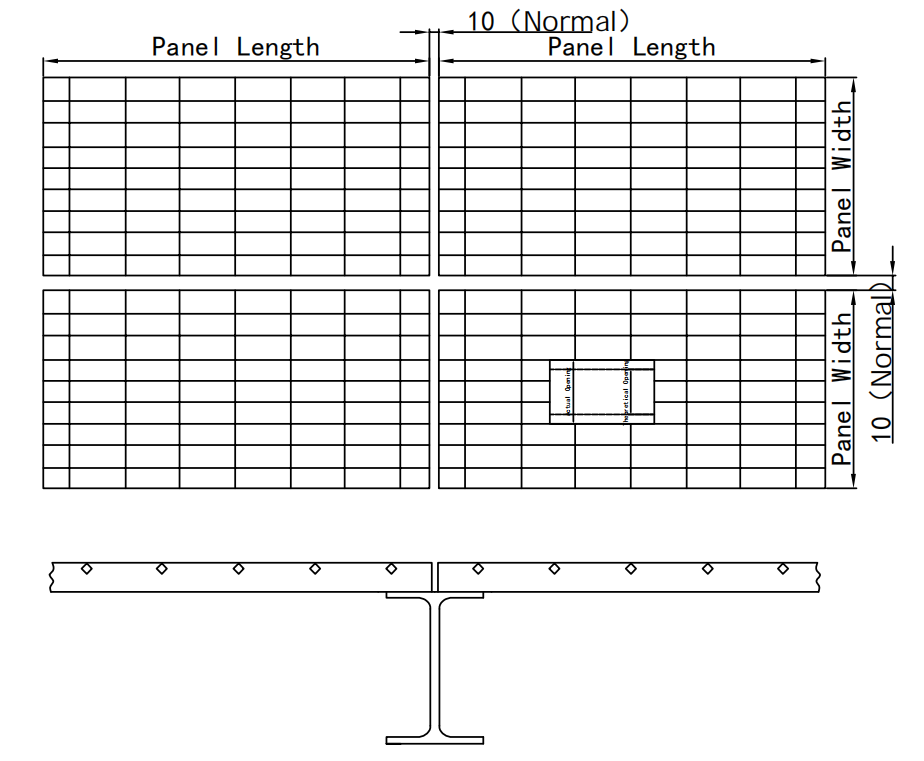

    1. Clearance Between Steel Grating Panels

    Allow 10 mm clearance between adjacent grating panels.


    Steel grating installation clearance

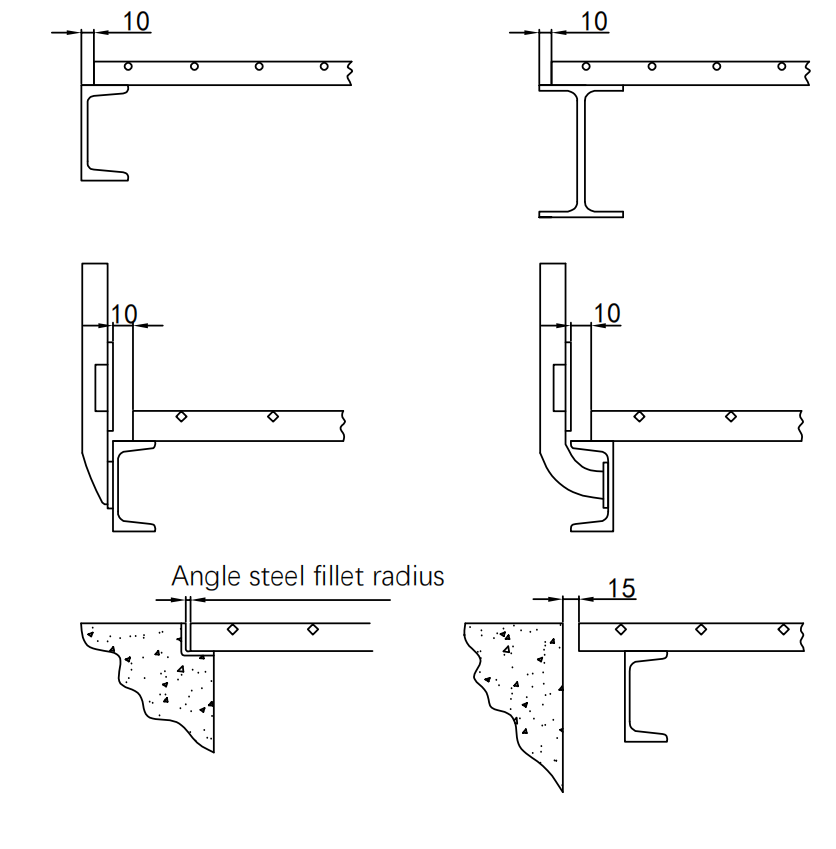

    2. Clearance Between Steel Grating and Side Edges

    Allow 10 mm clearance between edge of support beams, channels, kick plate and side handrails.

    Make sure the clearance is more than angle steel fillet radius.


    Steel grating installation clearance






    References
