Walkway grating clips are essential components used to secure grating panels to supporting structures, ensuring stability and safety in various applications. These clips are particularly valuable in environments where welding or drilling is impractical or prohibited, such as in hazardous areas or during maintenance operations. By providing a secure fastening solution, grating clips help maintain the integrity of walkways, platforms, and other grating installations.
There are several types of walkway grating clips, each designed to suit specific applications and grating configurations:
M-Type Clips: Ideal for standard flat steel thicknesses of 3–5mm, M-Type clips offer quick snap-on installation, making them suitable for light to medium load scenarios like maintenance platforms and walkways.

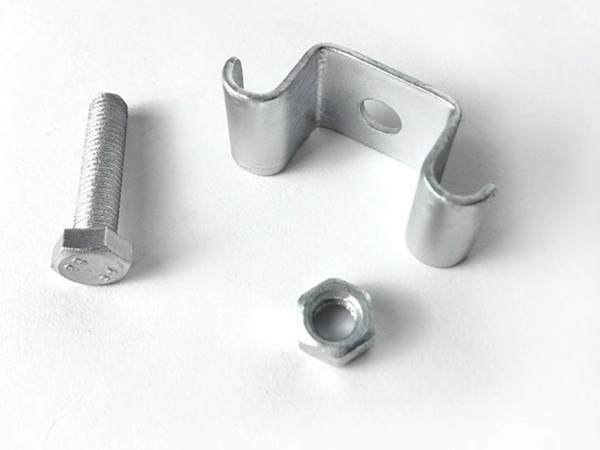

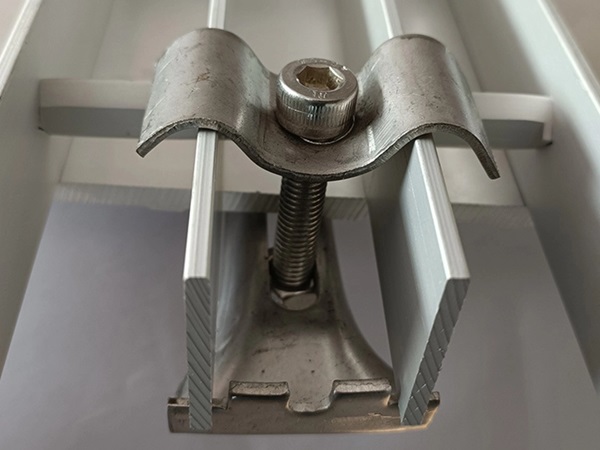

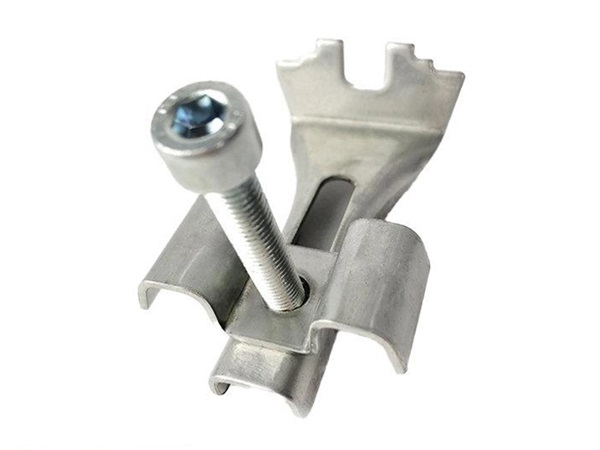

Saddle Clips: These clips are used to attach grating to structural members. A popular method of attaching grating to structures involves formed metal pieces, variously called saddle clips, butterfly clips, and M-Clips, placed onto the grating top surface and attached with a suitable screw, bolt, or pin to the structure.

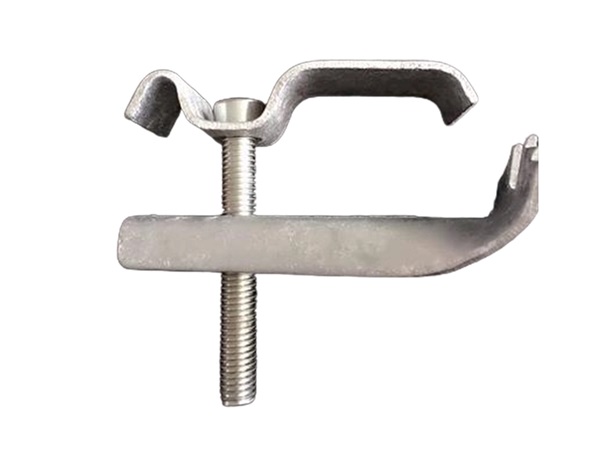

G-Clips: G-Clips are designed for use on square mesh molded grating and may require cutting at least one cross bar to allow the clip jaw to slide under the mounting flange. These clips are suitable for applications where a secure and removable fastening solution is needed. Applications of Walkway Grating Clips
Walkway grating clips are utilized in various industries and settings:
Industrial Platforms: In manufacturing and processing plants, grating clips secure walkway gratings, providing safe and stable surfaces for personnel and equipment.
Rooftop Walkways: On commercial and industrial rooftops, grating clips fasten walkway panels, ensuring safety for maintenance crews and preventing damage to the roofing material.
Public Infrastructure: In public spaces like parks and pedestrian bridges, grating clips help maintain the integrity of walkways, supporting foot traffic and enhancing safety.
Proper installation of walkway grating clips is crucial for ensuring the safety and longevity of the grating system:
Preparation: Ensure that the grating panels and supporting structures are clean and free from debris.
Placement: Position the grating clips at the designated attachment points on the grating and the supporting structure.
Securing: Fasten the clips using the appropriate tools, ensuring a tight and secure fit without over-tightening, which could damage the components.
Inspection: After installation, inspect the grating to confirm that all clips are properly secured and that the grating is stable and level.
Advantages of Using Walkway Grating Clips
Ease of Installation: Grating clips simplify the installation process by eliminating the need for welding or drilling, reducing labor time and costs.
Safety: By providing a secure fastening solution, grating clips enhance the safety of walkways and platforms, preventing accidents caused by loose or unstable grating.
Versatility: Available in various types and sizes, grating clips can be used with different grating configurations and in diverse applications.
Corrosion Resistance: Many grating clips are made from materials resistant to corrosion, ensuring durability and longevity even in harsh environments.
Conclusion
Walkway grating clips play a vital role in securing grating panels to supporting structures, ensuring the safety and stability of walkways and platforms. By understanding the different types of clips available and their appropriate applications, industries can select the most suitable fastening solutions for their specific needs. Proper installation and maintenance of these clips are essential for maximizing the performance and lifespan of grating systems.
