Steel Bar Grating Manufacturer

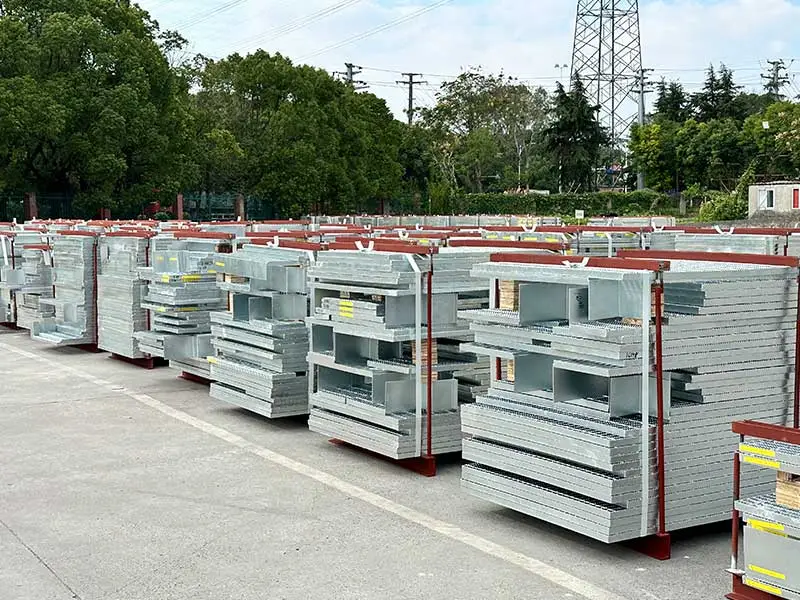

Name: Steel Bar Grating
Brand: Sino Composite Structures Co., Ltd.
Price: 150-800 USD
Rating: 4.8 (50 reviews)

Hot-dip galvanized steel grating also called bar grating, is made of load-bearing flat steel and cross bars arranged in a certain interval, welded into original plates by high-voltage resistance welding machines, and then processed into finished products through cutting, notching, opening holes, hemming and other processes. The welded steel grating is immersed in molten zinc liquid, and a dense zinc layer is formed on the surface of the steel grating through the zinc-iron alloy reaction. This process can greatly improve the corrosion resistance of the steel grating and extend its service life.

Request A Quote

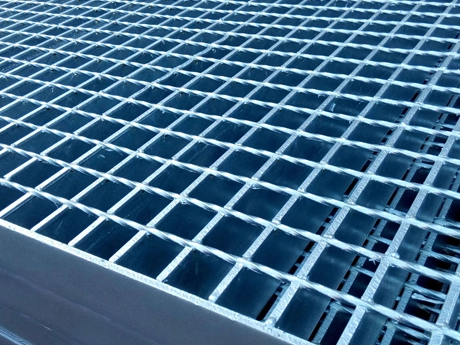

Hot Dip Galvanized Steel Grating with Plain Surface

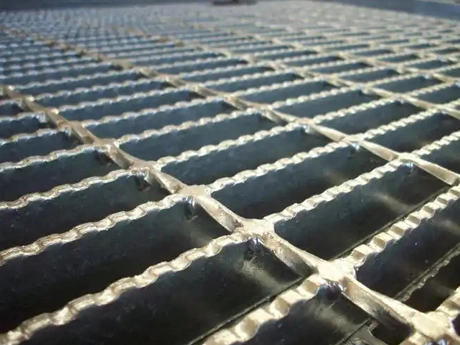

Hot Dip Galvanized Steel Grating with Serrated Surface

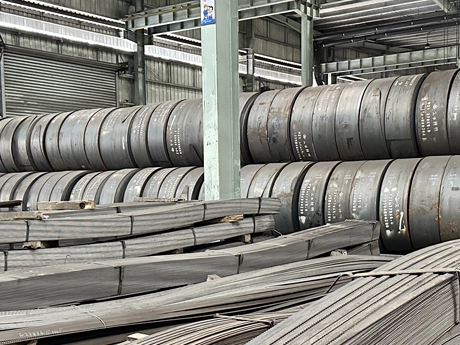

Steel Grating Raw Material Steel Rolls & Bars

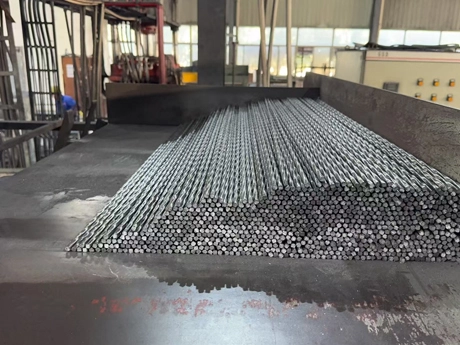

Steel Grating Raw Material Twisted Bars

Steel Production Process

Pressed welded steel grating. The cross bar is pressed into the bearing bar by an automatic resistance welding machine. This process is commonly used in the production of welded steel bar grating.

Penetration welding grating. Pre-drill holes in the bearing bars, usually in the middle. Insert the cross bar, usually a round bar. Weld it into shape.

Press locked steel grating. The pressed locked steel grating is made of bearing bars through processes such as grooving (holes), plug-in cross flat or serrated bars pressing, welding, and finishing. This type of grating provides superior performance in heavy-duty steel bar grating applications, commonly used in industries requiring strong, corrosion-resistant grating solutions.

Swage locked grating. The cross bar is pre-threaded and then clamped into shape using special equipment. Swage locked grating is commonly used in the production of aluminum gratings.

Riveted steel grating. The connecting bar(cross bar) is bent and fixed with rivets in a direction parallel to the bearing bar. This method is used for creating stainless steel bar grating and other custom bar grating solutions, ensuring long-lasting durability in heavy-duty applications.

Steel Grating Material & Manufacture Standard

Standard	Manufacture Standard	Steel Material Standard
Standard	Manufacture Standard	Bearing Bar	Cross Bar	Stainless Steel
China	YB/T 4001.1-2019	GB/T 700 Q235 Q235B	GB/T 700 Q235	ASTM A240 GR304(L) or GR316(L)
USA	ANSI/NAAMM(MBG531-00)	ASTM A1011 CS Type B or ASTM A36	ASTM A510	ASTM A240 GR304(L) or GR316(L)
British	BS4592	BS EN 10025	BS EN 10025	BS EN 10258
Germany	DIN24537-1	DIN EN 10025	DIN EN 10025	DIN EN 10088
Australia	AS1657	BS EN 10025	BS EN 10025	BS EN 10258

Conventional Grating Specifications

Bear Bar(mm)	Cross Bar(mm)			Bearing Bar Spacing(mm)			Cross Bar Spacing(mm)			Width(mm)	Length(mm)
20x3	5x5	6x6	8x8	30	34	40	38	50	100	993	6000	others
20x5	5x5	6x6	8x8	30	34	40	38	50	100	995	6000	others
25x3	5x5	6x6	8x8	30	34	40	38	50	100	993	6000	others
25x5	5x5	6x6	8x8	30	34	40	38	50	100	995	6000	others
30x3	5x5	6x6	8x8	30	34	40	38	50	100	993	6000	others
30x5	5x5	6x6	8x8	30	34	40	38	50	100	995	6000	others
32x3	5x5	6x6	8x8	30	34	40	38	50	100	993	6000	others
32x5	5x5	6x6	8x8	30	34	40	38	50	100	995	6000	others
40x3	5x5	6x6	8x8	30	34	40	38	50	100	993	6000	others
40x5	5x5	6x6	8x8	30	34	40	38	50	100	995	6000	others
50x3	5x5	6x6	8x8	30	34	40	38	50	100	993	6000	others
50x5	5x5	6x6	8x8	30	34	40	38	50	100	995	6000	others
* The table is of regular specifications. If other steel bar grating sizes are required, the steel bar grating factory will customize them for customers.

Hot Dip Galvanization Standard

Galvanized Standard	China	USA
Galvanized Standard	GB/T 13912	ASTM A123/A 123M
Material Thickness	3≤t≤6	1.6≤t≤3.2	3.2≤t≤4.8	4.8≤t≤6.4
Minimum Average Thickness (μm)	70	65	75	75
Conversion	mils=μmx0.03937 oz/ft²=μmx0.02316 g/m²=μmx7.067
*The thickness of the galvanized layer can be customized by the galvanized steel grating manufacturer according to customer needs

Advantages of Steel Bar Grating

With high strength and a light structure, steel bar grating is useful in various applications.
Good anti-corrosion performance
Beautiful appearance
Self-cleaning and easy maintenance
Good ventilation, lighting, and heat dissipation performance
Anti-slip and explosion-proof
Easy to install and disassemble

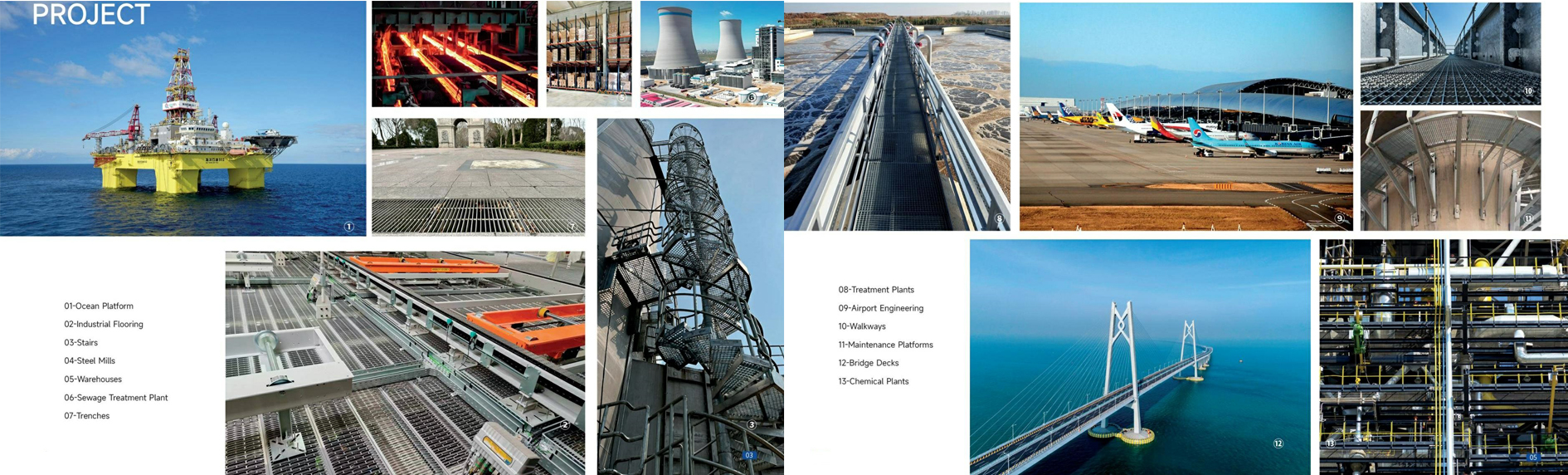

Steel Bar Grating Application

Offshore and ship platform
Industrial flooring
Stairs, particularly where serrated bar grating provides excellent traction
Steel mills
Warehouses, providing durable, easy-to-maintain flooring with metal bar grating
Power Plant
Trenches
Treatment plants, where galvanized steel grating offers long-lasting protection against corrosion
Airport

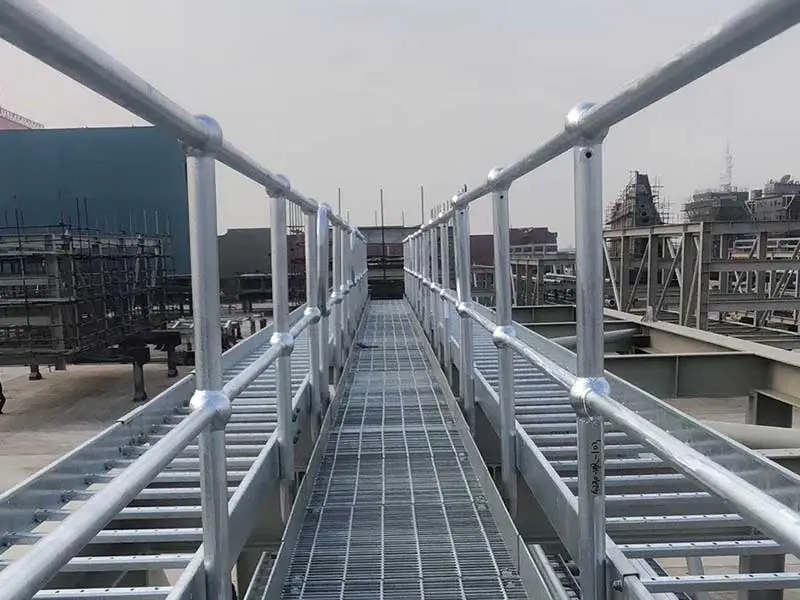

Walkway
Maintenance platform
Bridge deck
Chemical plant
